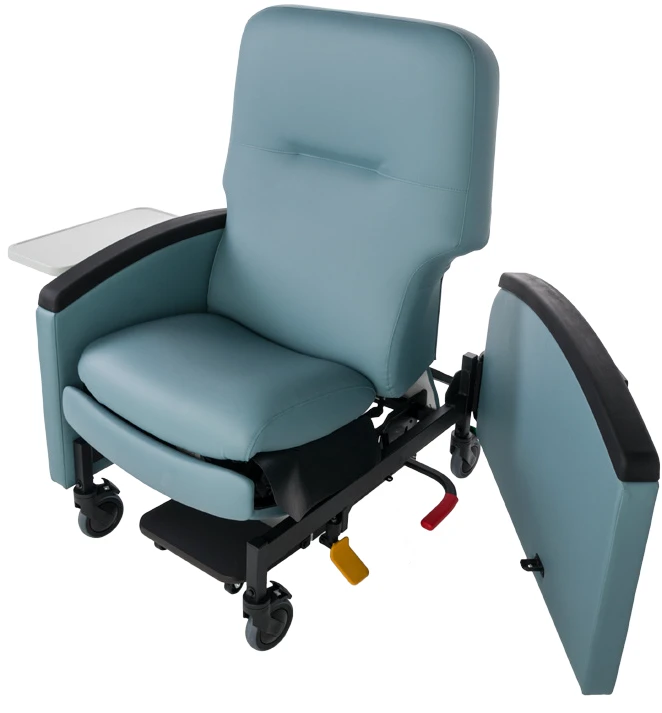

Pivot Arm Recliner
Clinical Care Recliner with Pivot Arms
A premium recliner that focuses on being the most aesthetically pleasing, comfortable, and durable recliner four use across a large variety of clinical and acute care settings. Available in a wide array of colors and materials.

Product Details
- Three positions: Upright, First Recline, and Second Recline
- Fourth Trendelenburg (or Shock) position, Caregiver-activated using side pedal
- Tente® Swivel casters for ease of maneuverability. 3 Total Locking and 1 Directional Locking caster
- Visco (Memory) foam engineered into the seat for ultimate comfort
- Wide contoured seat and back provides an enhanced level of patient comfort
- Two self-storing, fold down, side tables with smooth surface for easy cleaning
- Two pivot arms for easy convenient cleaning
- Urethane capped or fully upholstered arms
- Self-storing patient footplate for safer patient transport
- Rear push handle for improved patient transport
- Maximum Weight Capacity 400 lb (181.44 kg) – EVENLY DISTRIBUTED
Options – available at additional cost
- Urethane Capped Arms – IN601Uxx
- Urethane Capped Arms with heat and massage – IN601UHxx
- Fully Upholstered Arms – IN601Pxx
- Fully Upholstered Arms with heat and massage – IN601PHxx
- Comprehensive Service Parts Program




Accessories – available at additional cost
- Headrest Pillow – FR5659xxUS
- Headrest Skirt – HRSxx
- Cover – HRC601xx
- Swing-Away Folding Table – SAFT20-601
- IV Pole – 2101A
- IV Mount – FR601IVMNT
INTENSA, INC.
LIMITED WARRANTIES
SCOPE OF WARRANTY
Intensa, Inc. (“Intensa”) warrants to the original purchaser only that it will replace or repair components, at Intensa’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable Intensa instructions and manuals, including proper use and maintenance. To the extent that a component is warranted by a third party, Intensa conveys all of its rights under that warranty to the original purchaser, to the extent permitted. This limited warranty shall only apply to defects that are reported to Intensa’s customer service
team within the applicable warranty period and which, upon examination by Intensa or its authorized representative, prove to be a warranty item. This limited warranty is not transferable. Within the guidelines set forth in this document, the following components are warranted for the time period set forth below:
COMPONENTS *
Stools, Phlebotomy Chairs, and General Non-Industrial Seating:
Frame: .................................................................. 5 years
Casters: ................................................................ 1 year
Mechanical Components: ......................................... 3 years
Upholstered Seat † ................................................. 1 year
Clinical Recliners:
Welded Frame: ...................................................... 10 years
Mechanical Components: ........................................ 3 years
Casters: ............................................................... 1 year
Heat and Massage Option: ...................................... 2 years
Non-Welded Frames: ............................................. 3 years
Upholstered Components † .................................... 1 year
Exam and Treatment Tables:
Base: ................................................................. 5 years
Electronic Components: ........................................ 2 years
Mechanical Components: ...................................... 3 years
Original and Replacement Upholstered Tops † .......... 1 year
Casework (including all products and components except laminate surface tops and accessories): ........ 7 years
Laminate surface tops and accessories: .................. 1 year
Lighting: ............................................................. 5 years (Except Model 500: 1 year)
Replacement Parts ‡ ............................................ 90 days
* Labor is not included in the warranty
† Upholstery is only warranted on material supplied by Intensa: ................ 1 year
‡ The warranty period is as designated above. If a part is replaced under warranty, the original warranty period will not be affected. All other replacement parts will be subject to the warranty period specified.
The applicable warranty period shall commence from date of shipment to the original customer, unless there is an expiration date on the component in which case the warranty shall expire on the earlier of warranty period or the expiration date.
OBTAINING WARRANTY SERVICE
This limited warranty shall only apply to defects that are reported to the Distributor from whom the Customer purchased the product within the applicable warranty period. If there is not a Distributor, you must contact Intensa directly by calling 1.336.884.4096, or by e-mailing a request to intensa@grahamfield.com. Specific directions will be provided by the Customer Service Representative. Failure to abide by the specific directions will result in denial of the warranty claim.
EXCLUSIONS
The warranty does not cover and Intensa shall not be liable for the following:
-
-
Defects, damage, or other conditions caused, in whole or in part, by misuse, abuse, negligence, alteration, accident, freight damage, tampering or failure to seek and obtain repair or replacement in a timely manner;
-
Products which are not installed, used, or properly cleaned and maintained as required in the official manual for the applicable product;
-
Products considered to be of a non-durable nature including, but not limited to: tips, casters, filters, fuses, gaskets, lubricants, and charts;
-
Accessories or parts not provided by Intensa;
-
Matching of color, grain or texture except to commercially acceptable standards;
-
Changes in color caused by natural or artificial light:
-
Charges by anyone for adjustments, repairs, replacement parts, installation or other work performed upon or in connection with such products which are not expressly authorized in writing, in advance, by Intensa;
-
Any labor or shipping charges incurred in the replacement part installation or repair;
-
Costs and expenses of regular maintenance and cleaning; and
-
Representations and warranties made by any person or entity other than Intensa.
-
ENTIRE WARRANTY, EXCLUSIVE REMEDY AND CONSEQUENTIAL DAMAGES DISCLAIMER
THIS WARRANTY IS INTENSA’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. INTENSA MAKES NO IMPLIED WARRANTIES OF ANY KIND INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IF ANY MODEL OR SAMPLE WAS SHOWN TO THE CUSTOMER, SUCH MODEL OR SAMPLE WAS USED MERELY TO ILLUSTRATE THE GENERAL TYPE AND QUALITY OF THE PRODUCT AND NOT TO REPRESENT THAT THE PRODUCT WOULD
NECESSARILY CONFORM TO THE MODEL OR SAMPLE IN ALL RESPECTS. THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE DEFECTIVE PARTS. INTENSA SHALL NOT BE LIABLE FOR AND HEREBY DISCLAIMS ANY DIRECT, SPECIAL, INDIRECT,
INCIDENTAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO: DAMAGES FOR LOSS OF PROFITS OR INCOME, LOSS OF USE, DOWNTIME, COVER, OR EMPLOYEE OR INDEPENDENT CONTRACTOR WAGES, PAYMENTS AND BENEFITS. CERTAIN STATES MAY CONFER ADDITIONAL RIGHTS REGARDING WARRANTIES AND IN THOSE STATES INTENSA’S LIABILITY AND THE LIABILITY OF INTENSA’S SUPPLIERS, SHALL BE LIMITED TO THE FULLEST EXTENT PERMITTED BY LAW.
The warranties contained herein, together with Intensa’s current Terms and Conditions, contain all the representations and warranties with respect to the subject matter of this document, and supersede all prior negotiations, agreements and understandings with respect thereto. The recipient of this document hereby acknowledges and represents that it has not relied on any representation, assertion, guarantee, warranty, collateral contract or other assurance, except those set out in this document.
For additional information on these products or this warranty, please contact an Intensa Customer Service Representative.
NOTES:
-
-
Additional terms and conditions may apply. See Intensa’s General Terms and Conditions on its website and the specific warranties, which may accompany the specific product.
-
Freight claims must be notated on the appropriate shipping documents and must be made with immediacy. International, federal and state regulations govern specific requirements for freight claims. Failure to abide by those regulations may result in a denial of the freight claim. Intensa will assist you in filing the freight claim.
-
-
Claims for any short shipment must be made within three (3) days of the invoice date.
IN601 Specifications:
| Overall Width | 34.50" | Seat Width | 22.50" |
| Overall Depth | 38" | Seat Depth | 19" |
| Overall Depth (fully reclined) | 68" | Seat Height | 22" |
| Overall Height | 51.5" | Arm Height (from floor) | 27" |
| Tente Casters | 5" | Back Height | 76.2" |
| COM Requirement | 6 yards | ||
| Weight Capacity EVENLY DISTRIBUTED | 400 lbs. | ||
| Shipping Weight | 197 lbs. | ||
| Usually ships by truck - must be quoted | |||
